Chapter 9 - Auxiliary Views

T-Block Example

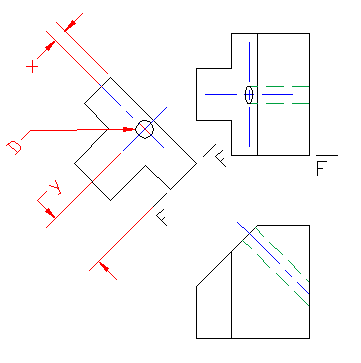

To show features on an inclined surface TS,
so that they can be completely dimensioned.
Holes must be specified and located in a
view where they appear as a true circle.
The solution shows partial view.
