Chapter 9 - Auxiliary Views

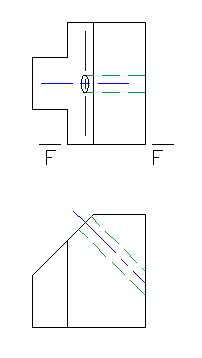

T-Block Example

To show features on an inclined surface TS,
so that they can be completely dimensioned.
Holes must be specified and located in a
view where they appear as a true circle.

(Click here or on the picture to see the next step)
