Chapter 5 - Inclined Surfaces in Orthographic Projections

Example 5-1

(Click here or on the picture to see the solution)

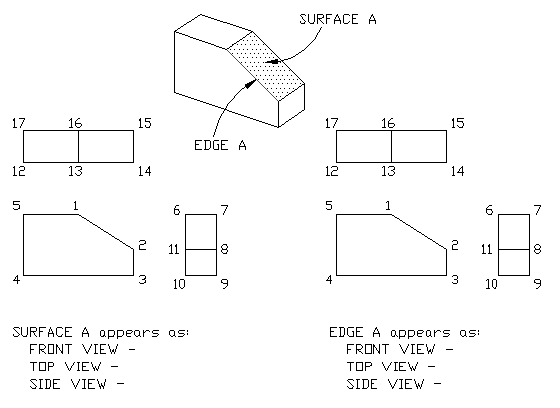

In Figure 5-1, surface A and edge A are identified in the isometric (3D pictorial) view. Identify the same surface and the same edge in each of the three orthographic views (front, top, and side) provided.
