Given: Lines AB and Point O
Required: Find and measure the true length of the shortest
line from
point O to line AB. Show that line in the given views.

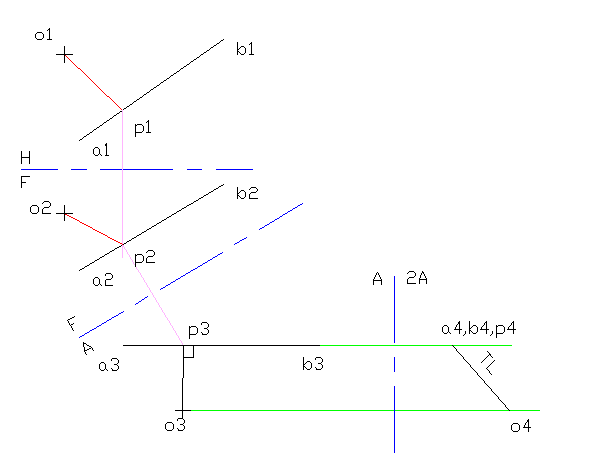

| Line op is TL in the view where line AB appears as a point. It can be measured in this view. The solution should be projected back to the given views. |
