Given: Lines AB and Point O
Required: Find and measure the true length of the shortest
line from
point O to line AB. Show that line in the given views.

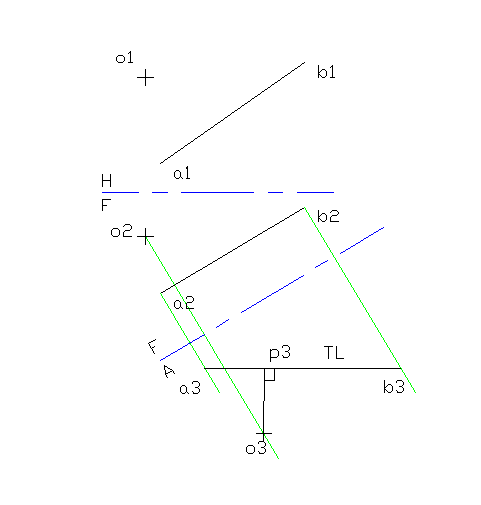

| Line op, from point o perpendicular to line AB, in a view where AB is TL is the shortest line from point O to line AB. It is not TL in this view however. |
