Chapter 10.4 - Problems with Auxiliary Views

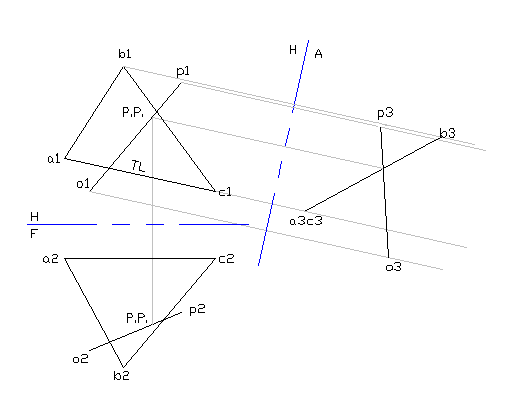

Intersection of line and plane
Given: Top and front views of a line and plane.Required: Find the point of intersection (piercing point).
(Go here or on the picture to see the solution)
(Go back)
