Chapter 10.4 - Problems with Auxiliary Views
Intersection of line and plane

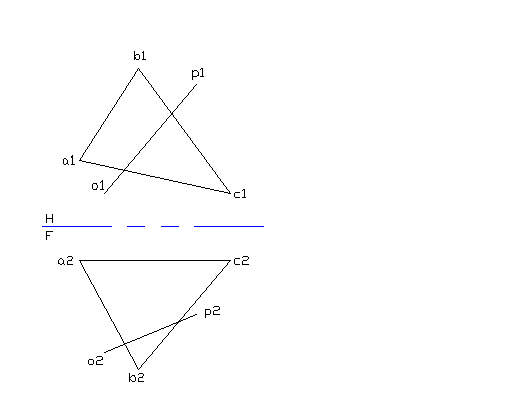

Given: Top and front views of a line and plane.Required: Find the point of intersection (piercing point).
(Click here or on the picture to find the piercing point)
