Chapter 10.4 - Problems with Auxiliary Views

Views of Plane

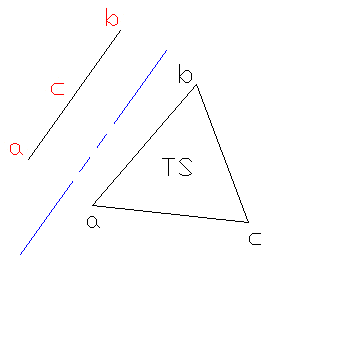

Given: TS view of plane surface.
Required: How does it appear in any adjacent view.
