Chapter 10.4 - Problems with Auxiliary Views

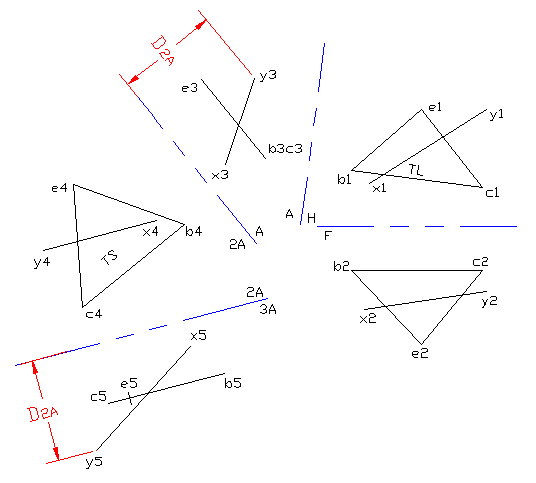

True angles between a line and a plane
Given: Top and front views of a plane and a lines.Required: Find the true angle between the two.
(Click here or on the picture to see the final solution)
(Go back)
