Chapter 10.4 - Problems with Auxiliary Views
Shortest Distance - Point to Plane

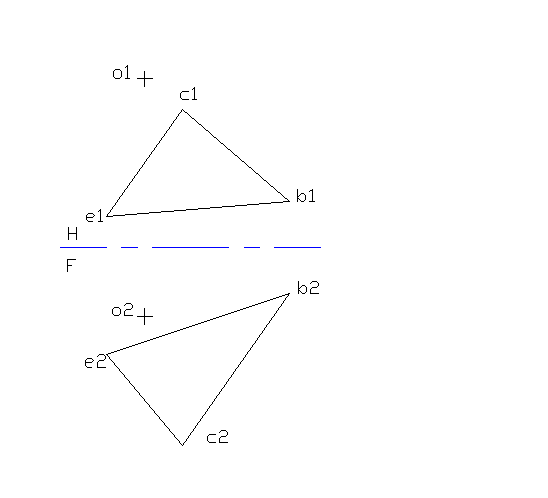

Given:
Plane EBC and Point O
Required:
Find and measure the true length
of the shortest line from point O to plane EBC.
(Click
here
or on the picture to see the next step)
