Given: Lines AB and Point O
Required: Find and measure the true length of the shortest
line from
point O to line AB. Show that line in the given views.

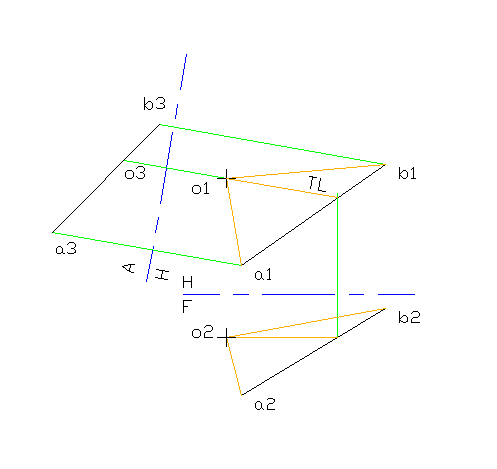

| Realize that line AB and point O defines a plane. Draw a view where that plane appears TS. Every line on the plane in that view is TL and every angle on the plane in that view is a true angle. |
(Click here or on the picture to see the next step)
