Chapter 10.4 - Problems with Auxiliary Views
Intersection of two planes

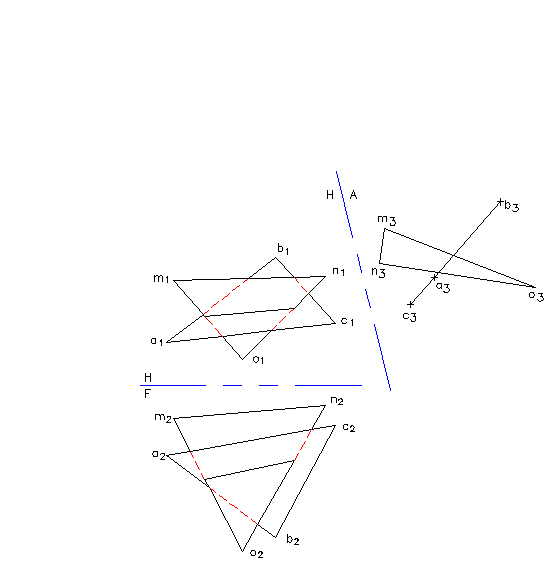

Given: Top and front views of two planes.Required: Find the line of intersection.
(Click here or on the picture to see the next step)
